LiDAR Height Data

LiDAR data provides customers with very detailed and highly accurate Digital Terrain and Digital Surface Models for small areas.

I want to order this product
EA Lidar 440 X 305

The most detailed height data available without the need for a costly on site survey, LiDAR offer an accuracy of +/-15cm with spatial resolution ranging from 25cm to 2m.

About LiDAR data

"Light Detection and Ranging (LIDAR) is an airborne mapping technique, which uses a laser to measure the distance between the aircraft and the ground. Up to 500,000 measurements per second are made of the ground, allowing highly detailed terrain models to be generated at spatial resolutions of between 25cm and 2 metres."



I want to order this product

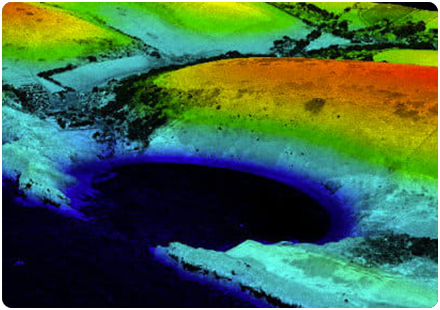

Image of EA LiDAR height data showing a coastal region

Download Samples:

1m

DTM: XYZ, ASC, SHP, DWG, DXF

DSM: XYZ, ASC, SHP, DWG, DXF

2m

DTM: XYZ, ASC, SHP, DWG, DXF

DSM: XYZ, ASC, SHP, DWG, DXF

LiDAR height data is ideal for:

  • Use in CAD or GIS

  • Site evaluation

  • Risk management (Flood)

  • Environmental analysis

  • Transport and infrastructure

  • Planning

LiDAR height data - the way you need it

How you access LiDAR depends on how you're using it. emapsite gives you the choice.



Search and select your site and extract your LiDAR height data plus any other data you need in a range of CAD or GIS formats.



Let's go!

Complementary product suite

Here's just a sample of some of the complementary products available through our online mapshop

EA Lidar Detailed Height Data

EA LiDAR Elevation Data

Detailed elevation data captured by aircraft, up to 25cm resolution

Product Details

Lidar Elevation data captured by aircraft is typically the most detailed elevation data available.

The Environment Agency captures Lidar Elevation databy aircraft on an ongoing basis for the purpose of creating up to date flood maps. The data is available with a resolution of up to 25cm depending on your study area (other Lidar resolutions include 2m, 1m and 50cm), and comes as both a DTM (Digital Terrain Model) - 'bald earth' - and a DSM (Digital Surface Model).

LIght Imaging Detection and Ranging (LIDAR) technology provides an extremely high vertical resolution for heights of buildings, vegetation and bare ground in open areas, as the surface detail within DSM has been left within the model. At such high resolutions it is possible to use this product for building heights modelling.

Open Government Licence: PDF

Technical Details

Supplier
Environment Agency
Update Cycle
Varies
Coverage
England and Wales (non-continuous coverage)
Scale
Resolutions from 0.25m to 2m
Formats Available
ASC, XYZ, TXT, DXF
Stated Accuracy
dependent on resolution
Licence Options
Open
Delivery Timescale
within minutes

Related Products

Aerial Photography, OS MasterMap Topography Layer

Download Samples

1m

DTM: XYZ, ASC, SHP, DWG, DXF

DSM: XYZ, ASC, SHP, DWG, DXF



2m

DTM: XYZ, ASC, SHP, DWG, DXF

DSM: XYZ, ASC, SHP, DWG, DXF





I want to buy this product

Lidar Height Data

Other LiDAR Elevation Data

Detailed elevation data captured by aircraft, up to 25cm resolution

Product Details

Lidar Elevation data captured by aircraft is typically the most detailed elevation data available.

With a resolution of up to 25cm depending on your study area (other Lidar resolutions include 2m, 1m and 50cm) Lidar Elevation data captured by aircraft is typically the most detailed elevation data available.

emapsite supplies Lidar data from a range of commercial Lidar capture programmes from across Great Britain as both a DTM (Digital Terrain Model) - 'bald earth' - and a DSM (Digital Surface Model).

Technical Details

Supplier
Various
Update Cycle
Ad-hoc
Scale
Resolutions from 0.5m
Formats Available
ASC, XYZ, TXT, DXF
Stated Accuracy
Dependent on resolution
Licence Options
Perpetual
Delivery Timescale
On request

Related Products

Aerial Photography, OS MasterMap Topography Layer

Download Samples

OS MasterMap 3D - Building Heights and OS Terrain 5

OS MasterMap is the most detailed & accurate view of Great Britain's landscape – with roads, fields, buildings, trees, fences & more. Combined with OS Terrain 5 as a single file, saving time & money.

Product Details

OS MasterMap is the most detailed, current and comprehensive map dataset of Great Britain, enabling you to make better decisions and manage your assets more effectively. Working with the other mapping layers in the suite, OS MasterMap Topography Layer gives you the visual context to help interpret addresses, routes and imagery. OS MasterMap is the approved dataset for planning applications and land registration.

Continually updated, OS MasterMap contains 450 million geographic features found in the real world, from detailed building and road outlines to water features, pathways, bus shelters and letter boxes.

OS MasterMap is ideal for:

  • Use in CAD or GIS
  • Planning
  • Site location and evaluation
  • Risk management
  • Transport and infrastructure
  • Asset management
  • Environmental analysis

OS Terrain 5 is ideal for:

OS Terrain 5 is particularly valuable for large scale development projects, planning, impact assessment

OS Terrain 5 offers detailed modelling of significant features such as road, rail, quarries and lakes​ allowing you to asses the lie of the land on-screen and reduce the need for site visits. OS Terrain 5 has a root mean square error (RMSE) value of 1.5 metres in urban areas and major communication routes.

OS Terrain 5 is maintained as part of the same revision process as the Ordnance Survey's large scale datasets and so adds a valuable third dimension to OS MasterMap Topography Layer.

Licence: PDF

Technical Details

Supplier
Ordnance Survey
Update Cycle
6 weekly
Coverage
GB
Scale
1:1250 (OS MasterMap) and 5m (Terrain 5)
Formats Available
DWG, SHP, PDF
Stated Accuracy
Urban +/- 1m (OS MasterMap)
Stated Accuracy
Rural +/- 8m (OS MasterMap)
Stated Accuracy
+/- 8m (OS MasterMap)
Licence Options
12, 24 or 36 months
Delivery Timescale
Within minutes

Related Products

PDF Plans, Aerial PhotographyOS MasterMap Highways LayerOS Mastermap Imagery Layer, Lidar, AddressBase Plus

Download Samples

OS MasterMap DWG in CAD

OS MasterMap Topography Layer

OS MasterMap Topography Layer is the most detailed and accurate view of Great Britain's landscape – from roads to fields, to buildings and trees, fences, paths and more.

Product Details

OS MasterMap is the most detailed, current and comprehensive map dataset of Great Britain, enabling you to make better decisions and manage your assets more effectively. Working with the other mapping layers in the suite, OS MasterMap Topography Layer gives you the visual context to help interpret addresses, routes and imagery. OS MasterMap is the approved dataset for planning applications and land registration.

Continually updated, OS MasterMap contains 450 million geographic features found in the real world, from detailed building and road outlines to water features, pathways, bus shelters and letter boxes.



OS MasterMap is ideal for:

  • Use in CAD or GIS
  • Planning
  • Site location and evaluation
  • Risk management
  • Transport and infrastructure
  • Asset management
  • Environmental analysis

Technical Details

Supplier
Ordnance Survey
Update Cycle
6 weekly
Coverage
GB
Scale
1:1250
Formats Available
DWG, SHP, GML, TAB, DXF, GDB, KML, TIFF
Stated Accuracy
Urban +/- 1m
Stated Accuracy
Rural +/- 8m
Stated Accuracy
+/- 8m
Licence Options
12, 24 or 36 months
Delivery Timescale
Within minutes

Related Products

PDF Plans, Aerial Photography
Complementary Data
OS Mastermap Highways Layer, OS Mastermap ITN, OS Mastermap Imagery Layer, Lidar, AddressBase Plus

Download Samples

OS MasterMap Detailed Raster Mapping

OS MasterMap Graphic

OS MasterMap Graphic is a picture version of OS Mastermap, the most detailed and accurate view of Great Britain's landscape

Product Details

OS MasterMap Graphic is a simple image-only version of OS Mastermap Topography Layer, the most detailed, current and comprehensive map dataset of Great Britain. When you only need an image of Mastermap and have no requirement to use it in CAD or GIS software, OS Mastermap Graphic is your best choice - a cost effective way of getting the image you need to use within document creation. Please note that OS Mastermap Graphic is a raster image only, with no georeferencing information, so isn't suitable if you need to measure distances.



OS MasterMap Graphic is ideal for:

  • When you need an image of large scale mapping
  • Using within word processing and graphic design programs
  • Detailed site maps for brochures and guides
  • Site location and evaluation
  • Risk management
  • Transport and infrastructure
  • Asset management

Technical Details

Supplier
Ordnance Survey
Update Cycle
6 weekly
Coverage
GB
Scale
1:1250
Formats Available
TIFF, BMP, PNG, JPG
Stated Accuracy
Urban +/- 1m
Stated Accuracy
Rural +/- 8m
Stated Accuracy
+/- 8m
Licence Options
12, 24 or 36 months
Delivery Timescale
Within minutes

Related Products

PDF Plans, OS MastermapOS Mastermap Imagery LayerAerial Photography

Download Samples

Aerial imagery sample

OS MasterMap Imagery Layer

The OS MasterMap Imagery Layer comprises the best available aerial images, edge-matched and orthorectified to align with other OS MasterMap layers.

Product Details

The aerial images give added context to features which exist within other (vector) OS MasterMap layers and allow interpretation of other features not identified within the vector datasets. The data is rigorously checked for quality to maintain a consistent standard of both positional accuracy and image quality.

Additionally Ordnance Survey processing software produces true-orthorectified imagery, removing building lean from aerial imagery to give you a consistent top-down view.

Aerial imagery is ideal for checking road markings, tree canopies or site entrances, cutting down the need for site visits, so you can save money and manage time more efficiently.

Purchasable as both a traditional raster cut-out of a user defined area or as web services.

OS MasterMap Imagery layer is ideal for:

  • Planning
  • Site location and evaluation
  • Land use classification and analysis
  • Transport and infrastructure
  • Asset management
  • Environmental analysis
  • Flood mapping
  • 3D visualisation

.

Technical Details

Supplier
Ordnance Survey
Update Cycle
Quarterly
Coverage
GB
Scale
25cm resolution

Related Products

PDF Plans, Aerial Photography
Complementary Data
OS Mastermap Highways Layer, OS Mastermap ITN, OS Mastermap Imagery Layer, Lidar, AddressBase Plus



Aerial photography 25cm



Complementary Products



OS MasterMap Topography Layer, OS MasterMap Highways, AddressBase Plus, National Tree Map, Lidar Data

Download Samples

OS MasterMap Roads and Routing map image

OS MasterMap Highways Network

OS MasterMap Highways Network provides an authoritative view of the whole road network in Great Britain, ideal for routing and public sector data-sharing.

Product Details

OS Mastermap Highways Network is the Ordnance Survey's latest and most comprehensive dataset of Great Britain's road network and is the next generation of the well-known product OS ITN. It is comprised of a suite of products that brings together the best information from authoritative sources in to one central location.

In addition to road centre lines and classifications, Highways features richer content that is better structured to allow for analysis as well as visualisation. Highways has been designed with traffic analysis, asset management, planning and the emergency services in mind, allowing users to plan for tomorrow. It gives you accurate and precise asset management information on who maintains the road network and the type of surface reinstatement values. And it's a valuable reporting tool, for key facts and statistics about the road, against a consistent and authoritative base.

OS Highways - Roads can be extended using OS Highways - Routing, and OS Highways - Paths

OS Highways - Roads attribution includes:

  • road classification, naming and numbering
  • vehicle restrictions
  • links to OS Addressbase and the USRN
  • roads under construction
  • public/private maintained roads
  • special engineering difficulty
  • special event information
  • road hazards: overhead structures, level crossings, movable bollards, gates
  • protected streets
  • traffic sensitive roads



OS Highways - Routing additionally includes:

  • turn restrictions



OS Highways - Paths additionally includes:

  • links between roads/paths

Technical Details

Supplier
Ordnance Survey
Coverage
GB
Scale
1:1250

Related Products

PDF Plans, Aerial Photography
Complementary Data
OS Mastermap Highways Layer, OS Mastermap ITN, OS Mastermap Imagery Layer, Lidar, AddressBase Plus

Download Samples

OS MasterMap Water Network data image

OS MasterMap Water Network Layer

The OS MasterMap Water Network Layer is a detailed, accurate and up-to-date vector dataset of Great Britain’s water network - rivers, streams, lakes and canals.

Product details

The OS MasterMap Water Network​ is the only detailed, heighted water network of Great Britain showing the flow and precise course of rivers, streams, lakes and canals.​

It offers the most accurate view of all watercourses across the whole of Great Britain created, in collaboration with the Environment Agency and Scottish Environmental Protection Agency, to a consistent specification and update schedule – so it can help support flood risk management decisions and the sharing of information between national and local organisations.

Accurate physical properties of watercourses enable modelling in 2D and 3D like never before, thanks to the clear and detailed information about river flow, gradient and river widths, along with its precisely mapped course.

The data maps a wide range of features, from aqueducts to tunnels with full flow direction and for the first time the network of underground watercourses – inferred from the entry and exit points.



OS MasterMap Water layer is ideal for:

Planners, for surveyors, for engineers – this Layer offers the potential to model in 2D and 3D like never before, thanks to the clarity of river flow, gradient and river widths.

Technical Details

Supplier
Ordnance Survey
Coverage
GB
Scale
1:1250
Formats Available
DWG, SHP, GML, TAB, DXF, GDB, KML, TIFF
Stated Accuracy
Urban +/- 1m
Stated Accuracy
Rural +/- 8m
Stated Accuracy
+/- 8m
Licence Options
12, 24 or 36 months
Delivery Timescale
Within minutes

Related Products

OS Mastermap, Aerial PhotographyOS Mastermap Imagery Layer, Lidar

Download Samples

OS AddressBase Premium data

AddressBase Premium

Combining National Land and Property Gazetteer (NLPG) and Royal Mail Postcode Address File (PAF), for the full lifecycle of an address.

Product Details

The new Address products have been produced by GeoPlace, a joint venture between Ordnance Survey and the Local Government Group.

The AddressBase™ Premium product includes the best parts of local government’s National Land and Property Gazetteer (NLPG), Ordnance Survey’s OS MasterMap Address Layer 2 and the Royal Mail Postcode Address File (PAF), plus comprehensive address classification details.

AddressBase™ Premium is the most comprehensive product in the range and is an entirely new concept in the world of addressing for GB (England and Wales currently - Scotland coming in 2012). AddressBase™ Premium is a relational database detailing the whole lifecycle of an address from pre-build through completion and successive name changes of businesses. Suitable for use in interrogating for bespoke services, emapsite can provide access to this valuable dataset through our web services delivery solutions. Please call us for more details​.

Technical Details

Supplier
Ordnance Survey
Coverage
GB
Stated Accuracy
Sub-metre

Related Products

PDF Plans, Aerial Photography
Complementary Data
OS Mastermap Highways Layer, OS Mastermap ITN, OS Mastermap Imagery Layer, Lidar, AddressBase Plus

Download Samples
